Portable electromagnetic drill & tapping machine

Previous ‹‹ » Next

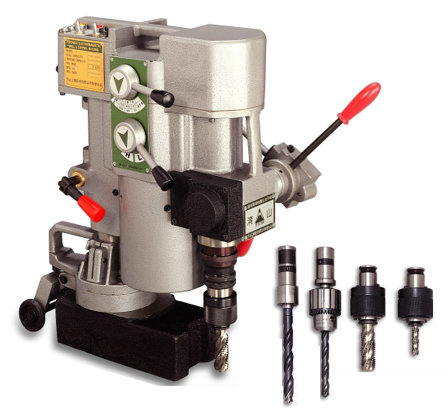

Portable electromagnetic drill & tapping machine


Product Features
  • The rovolving speed is changeable during the machine is being operated. The gears are safe absolutely.
  • The total maximum height is 570m/m. Design of motor and gear box makes the point gravity center become only 280m/m. As the center of gravity is quite low and hard to be fallen, the magentic foundation can attain its function and efficiency.
  • The distributor disc is located on the top of machine which prevent it from being fallen or destroyed.
  • MTM-930A & MTM-922A with six-step speed variable (max. revolving speed: 756min revoling speed:51) depends on the hardness of processed objects and size of hole which makes the operator more comfortable to select the revolving speed.

Specifications
Model MTM-922A MTM-930A MTM-940A
Drill Capacity 1/4"~7/8"
6Ø ~22Ø		 1/4"~1-1/4"
6Ø ~32Ø		 5/8"~1-1/2"
16Ø ~38Ø
Tapping Capacity 3/8"~7/8"
10 Ø ~22Ø		 3/8"~1-1/8"
10 Ø ~30Ø		 5/8"~1-1/2"
16 Ø ~38Ø
Power 220V
3-Phase		 220V
3-Phase		 220V
3-Phase
HP 1-1/2 2 2-1/2
R.P.M. 756 456
303 186
127 51		 756 456
303 186
127 51		 686 404
268 165
165 97
65 38
Max Depth 100 100 130
Body Stroke 150 150 200
Transvers al Move 20 20 20
Turning Degree 330° 330° 330°
Electro Magretic 126x240 135x280 155x280
Electro Magretic Force 2000kgs 2500kgs 3000kgs
Height 570 580 730
Torsion Fixture Standard Fitting 5 7 8
Drill Sleeve Standard Fitting 2 3 3
Fittings Weight 5 7 16
Machine Weight 60 70 100
* These specifications and shape may be changed for improvement without prior notice.
