Volumec Air Tapping Machine - VT / VTS series

     Tapping Machine ---    Volumec (Italy)    ---

Previous ‹‹ » Next

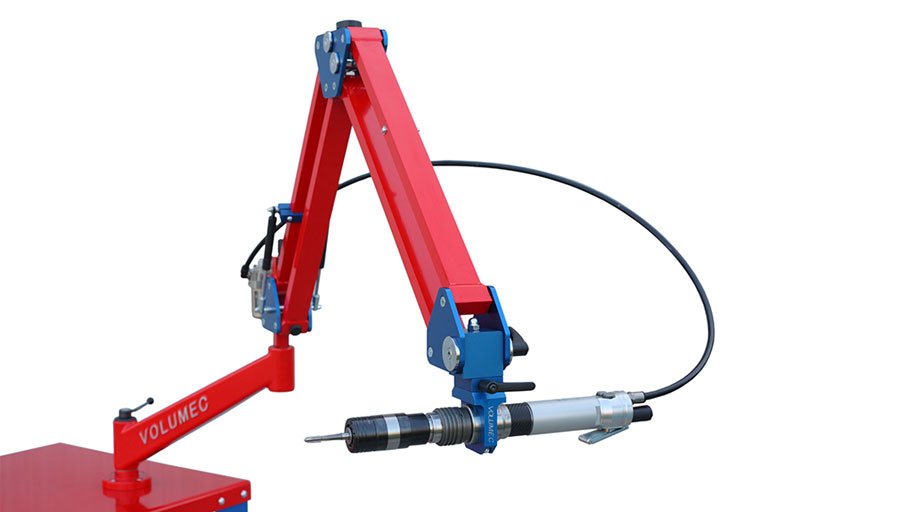

Volumec Air Tapping Machine - VT / VTS series



Our experience in the field of mechanical engineering and carpentry of all kinds has led us to develop machines that can reduce work time and increase productivity.

Model Tapping capacity in steel Torque at 6 bar (Nm) No-load speed
( Rpm)
Weight
VT 512 M3-M12 28 600 19Kg
VT 516 M3-M16 38 450 19Kg
VT 600 M5-M30 180 100 20Kg
VTS 1000 M3-M30 45/180 350/100 20Kg

Product Specification
Triple-balanced articulated arm system made entirely of aluminum, which ensures a quick and accurate  holes alignment
Standard multi directional  head to thread with different in any position
Magnet positioning for quick and accurate alignment of the spindle
Balance and fluidity of movement guaranteed by joint and adjustable gas spring mounted on ball bearings.
Air motor that does not require additional modules to speed
Possibility of tapping blind holes and through holes with the adjustable clutch
Filter unit with pressure regulator and lubricator

Accessories
carrello maschiatrice
Trolley

Trolley for tap machines with a shelve with spinners.
Size: 850x750x870h
Weight: 65Kg
carrello maschiatrice
Spindle and countersinks

Spindle and countersinks
carrello maschiatrice
Bush for tapping with adjustable clutch

Tool holders for tap machine model M3 to M30 with and without friction, compasses, magnet positioning.
carrello maschiatrice
Lubrification system

automatic lubrification system.
