Millstar JY-VT Series Bed Type Turret Vertical Milling Machine

     Milling Machine ---    Millstar Milling Machine    ---

Previous ‹‹ » Next

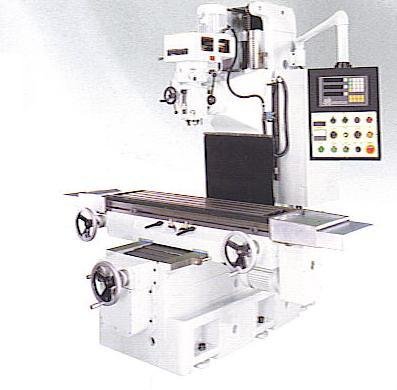

Millstar JY-VT Series Bed Type Turret Vertical Milling Machi


Features
  • Integrated automatic lubricating system
  • Cooling system
  • Each travel axis is equipped with limit switches to ensure safety.
  • Slide surface lies been treated with hardening, the rigid construction to ensure machine an stable performance.
  • The X, Y axis slideways coated with low-friction property material TURCITE-B
  • Standard electrical and electronic components are adopted. Electrical and electronic circuits are properly concealed.
  • Controls are integrated on a panel, enhancing simple and easy operation thus avoiding fatigue and increase working efficiency.
  • Consolidated rigid cast-iron design treated annealing process providing high precision and reliable operation.
  • Low table height convenient for work piece handling.
Specification
SPECIFICATION / MODEL

JY-VT550
Table table size mm 1500x450
X axis travel mm 1100
Y axis travel mm 520
Z axis travel mm 600
T-Slot(width x trough number x pitch) mm 18 x 3 x 80
X Axis Feedrate (Variable) mm/min 25~1500
Y Axis Feedrate (Variable) mm/min 25~1500
Z Axis Feedrate (Variable) mm/min 25~1500
X Axis Rapid travel mm/min 1500
Y Axis Rapid travel mm/min 1500
Z Axis rapid travel  mm/min 1500
Range of
cutting
reference
Cutting length mm 1100
Cutting width mm 520
Cutting height mm 600
Loading weight kgs 1000
Spindle
(vertical)
Spindle speed R.P.M (60HZ) - 16 steps 75~3600(ST)
Variable 80~3800(OP)
Spindle nose (N.S.T) - NT40
Swivelling angel of head (R&L) - ±45o
Distance of spindle nose to table surface - 100-700
Distance of spindle center of column slide surface - 550
Quill travel - 140
Spindle feed - 0.035 / 0.007 / 0.14
Power Spindle motor - 5HP
X axis feed motor - 1HPx4P
Y.Z axis feed motor - 1HPx4P
Packing
dimension
LxWxH (after packing) - 2600x2050x2550
Net Weight (before packing) - 3400kg
Gross weight (after packing) - 4100kg
