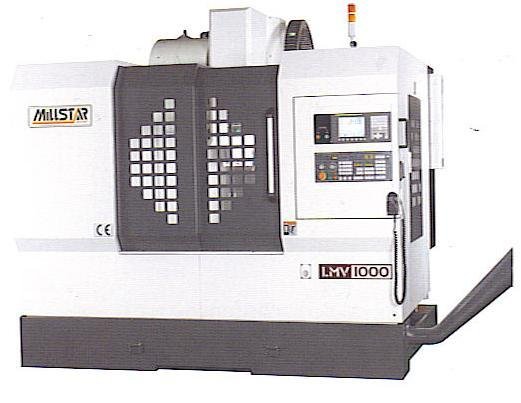

Vertical Machining Center LMV Series LMV850/1000


Specification









Model   LMV850 LMV1000

Table


Work area mm 1010X550 1200X500
T-slot mmxT 125X18X4T 125X18X4T
Max. loading kgs 800 1000
Travel
Three Axes Travel mm 850X600X620 1000X600X620
Spindle nose to work table surface mm 130~750 130~750
Spindle center to Cloumn slide ways mm 620 620
Spindle
Spindle taper   BT40 BT40
Spindle diameter mm Ø70 Ø70
Spindle speed rpm 8000 8000
Feedrate
3 axes Slide Feedrate   Linear Guide ways Linear Guide ways
3 axes Cutting Feedrate m/min 10 10
3-axes rapid Feedrate m/min 30 30
ATC
Tool Selection   Bi-directional shortest path Bi-directional shortest path
Max. Tool diameter x length mm Ø100x300 Ø100x300
Max. Tool weight kgs 7 7

Tool shank

  BT/CAT40 BT/CAT40

ATC capacity(Armless type)

  16 20

Motor



Spindle motor (cont/30min)

kw 7.5/11 7.5/11
X, Y, Z-axes Sonomotor   HF203 HF203

X, Y, Z-axes ball screw

  Ø40XP10 Ø40XP10

Coolant pump

w 660 660

Miscellaneous


External dimensions(LxWxH) mm 2570X2180X2700 2810X2180X2700
Splash guard   Full splash guard Full splash guard

Coolant tank capacity

L 240 250
Net Weight (Approx.) kgs around 6000 6200
