Vertical Machining Center LMV1200/1400

     CNC Machining Center ---    CNC Machining Center    ---

Previous ‹‹ » Next

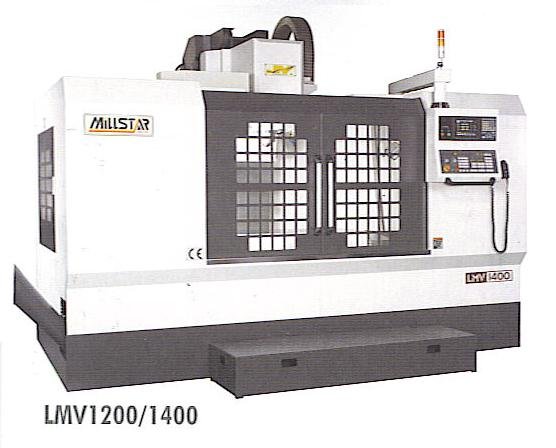

Vertical Machining Center LMV1200/1400


Specification









Model   LMV1200 LMV1400

Table


Work area mm 1300X680 1600X700
T-slot mmxT 100X18X5T 126X22X5T
Max. loading kgs 1200 2000
Travel
Three Axes Travel mm 1200X620X650 1400X750X700
Spindle nose to work table surface mm 150~800 250~900 370~1070 200~900
Spindle center to Cloumn slide ways mm 650 850 800
Spindle
Spindle taper   BT40 BT50 BT40 BT50
Spindle diameter mm Ø70 Ø100 Ø70 Ø100
Spindle speed rpm 8000 4500 8000 4500
Feedrate
3 axes Slide Feedrate   X,Y linear/ Z Box Ways X,Y linear/ Z Box Ways
3 axes Cutting Feedrate m/min 10 10
3-axes rapid Feedrate m/min 24/24/18 24/24/18
ATC
Tool Selection   Bi-directional shortest path Bi-directional shortest path
Max. Tool diameter x length mm Ø100x300 Ø146x300 Ø100x300 Ø146x300
Max. Tool weight kgs 7 15 7 15

Tool shank

  BT/CAT40 BT/CAT50 BT/CAT40 BT/CAT50

ATC capacity(Armless type)

  20 16 20 16

Motor



Spindle motor (cont/30min)

kw 7.5/11 7.5/11 11/15 11/15
X, Y, Z-axes Sonomotor   HF203/HF353 HF353

X, Y, Z-axes ball screw

  XY50 P12 250 P10 XY50 P12 250 P10

Coolant pump

w 660 660

Miscellaneous


External dimensions(LxWxH) mm 3400X2350X2840 3400X2350X2980 4000X2745X3145
Splash guard   Full splash guard Full splash guard

Coolant tank capacity

L 300 5000
Net Weight (Approx.) kgs 7800 8300 10500 11000
