Rotating Horizontal Bandsaw Machine

     Bandsaw Machine ---    Sinaida Bandsaw Machine    ---

Previous ‹‹ » Next

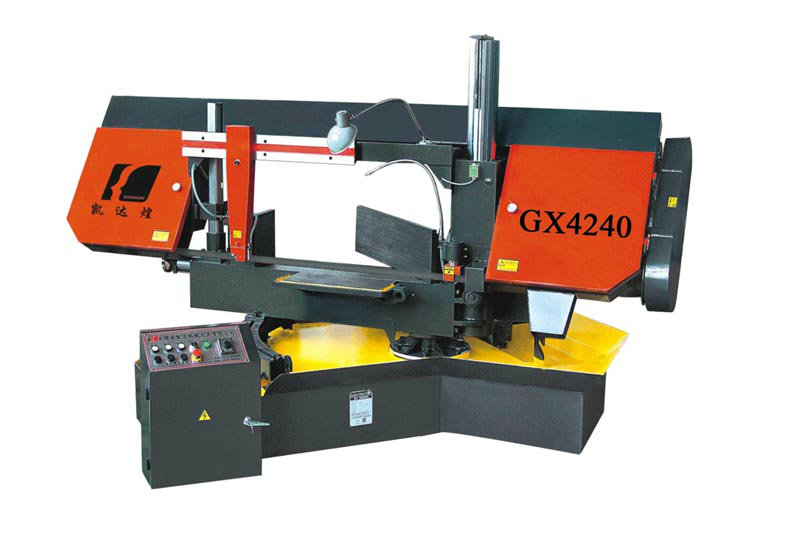

Rotating Horizontal Bandsaw Machine



Model/Name  GX4240/Metal Sawing machine
Cutting capacity  ¦µ400mm,plate 350mm
Saw blade speed line  22/40/60 m/min (3 steps)
Working way clamping  hydraulic
Specifications band saw  1.3*41*4900mm
The main electrical power  4.0 kw,380v,50hz
Pump motor power  1.1kw,380v,50hz
Package size  2600*1500*1700 mm

The main features

Metal Sawing machine

Rotating metal band sawing machine is one of the most advanced band saw machine in domestic market . except the vertical cutting function the saw log can rotating 0till 45 degree by manual implementation of oblique , this band saw machine apply to the channel steel , H steel ,and other special-shaped steel ,round steel ,  pipe ,plate metal and other metal materials , compact and rational layout ,easy to operate ,and convenient to maintenance .


Hydraulic control the cutting speed

Large scale band saw machine adopt dual cylinders control , cutting/sawing stable ,high precision

Except the vertical cutting function ,the saw log can rotating 0till 45 degree by manual

Can customized hydraulic tension saw blade as requests

Can customized NC automatic machine
