JZB-25
Drilling Machine --- Vertical Drilling Machine ---
| Previous ‹‹ | » Next |

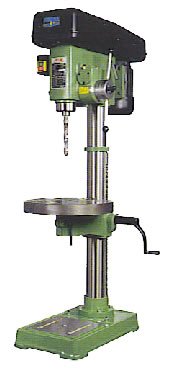

Model: JZB-25
It is a Auto-Feed Drilling Machine.
Features
- Spindle feeding can be changed automatically and manually.
- Belt driven, low noise
- Will return to start place automatically
Specifications
| Max. Drilling Capacity | 25mm |
| Diameter of column | 102mm |
| Spindle travel | 130mm |
| Distance spindle axis to column surface | 230mm |
| Max. distance spindle nose to worktable | 750mm |
| Max. distance spindle nose to base | 990mm |
| Spindle taper | MT.3 |
| Spindle speeds range | 230 - 2160rpm |
| Spindle speeds | 6 |
| Spindle power feeds | 0.1, 0.16, 0.25mm/rotation |
| Dimension of worktable surface | Ø420mm |
| Dimension of base worktable surface | 260mm x 260mm |
| Overall height | 1560mm |
| Motor | 1500W |
| Weight | 188kg |
