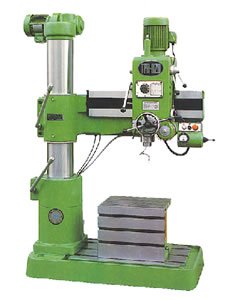

Taiwan Radial Drill

     Drilling Machine ---    Radial Drilling Machine    ---

Previous ‹‹ » Next

Taiwan Radial Drill


MODEL TPR-720A TPR-820A TPR-920A TPR-1100
Dai.of column 210 260 A
Distance from column surface to spindle center , Max 750 850 950 1100 D+C
Distance from column surface to spindle center , Min 220 280 C
Travel of spindle head 530 630 730 820 D
Distance from base surface to spindle end , Max 1060 1210 1270 E
Distance from base surface to spindle end , Min 260 350 470 F
Elevating height of Arm 580 640 570 E-F-I
Effective area of box table 600×445×380 635×520×415 L×K×H
Dimension of base 1260×640×160 1725×715×180 R×S×Q
Taper hole spindle MT#4
Stroke of spindle 220 230 I
R.P.M of spindle (rpm x steps) 88 , 154 , 282 , 455 , 796 , 1500×6 steps 44-1500×12 steps
Feed of spindle (rev. x steps) 0.05 , 0.09 , 0.15×3 steps 0.05 , 0.09 , 0.15 ×3 steps
Main motor (HP) 2HP 3HP
Elevating motor (HP) 1HP 1HP
Coolant equipment (HP) 1/8 HP 1/8 HP
Machine height from floor (Max.) 2170 2320 2530 M
Base + column height 1850 2010 2000 G
Net weight (approx)kgs 1120 1200 1250 1800
Shipping weight (approx)kgs 1250 1340 1400 1950
Shipping dimensions (LxWxH) 1680×826×2160 1680×826×2190 1806×864×2210 1880×864×2210
Capacity Drilling Stell 32Ø 42Ø
Cast iron 50Ø 55Ø
Tapping Stell 25Ø 25Ø
Cast iron 32Ø 35Ø
