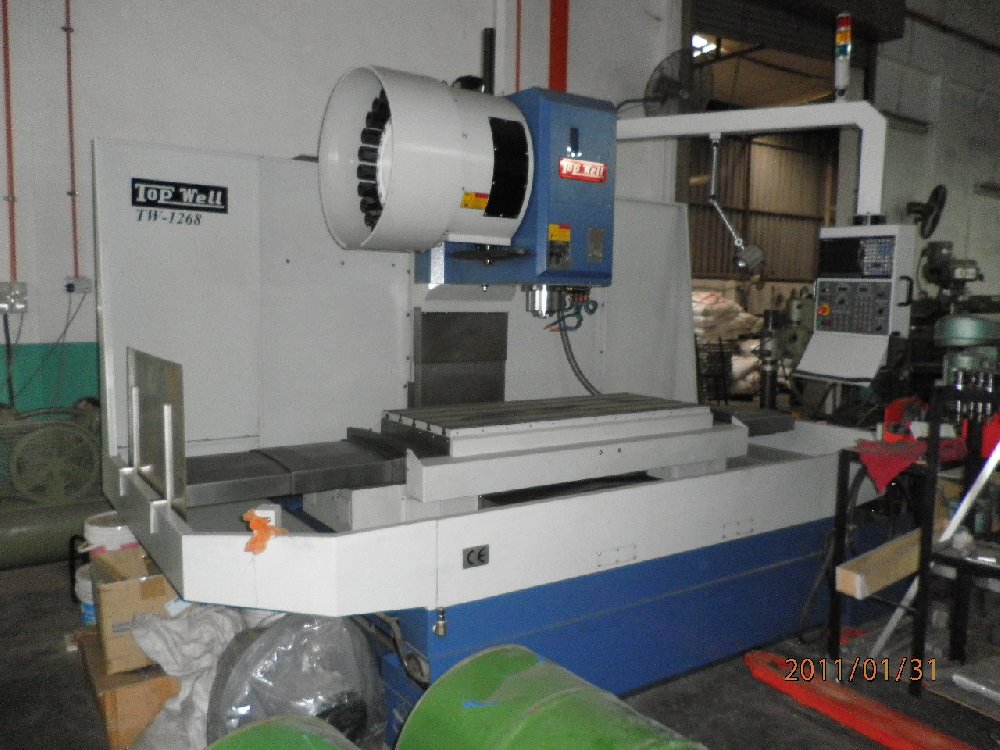

Used Cnc Machining Center


Year : 2009
Control : Mitsubishi

TW-1268 SPECIFICATIONS

MODEL TW-1268
Travel
X axis (Longitudinal) 1200 (48")
Y axis (Cross) 680 (26.3")
Z axis (Vertical) 610 (24")
Spindle nose to table surface 125-725 (5" - 28.5")
Spindle center to column surface 720 (28.3")
Table
Table dimension 600 ¡Á 1500 (23.6"¡Á 59")
T-slots (wide ¡Á no. ¡Ápitch) 18 (0.70") ¡Á 5 ¡Á 100 (3.94")
Table height from the floor 860 (33.8")
Table load capacity 1200kgs (2640lbs)
Headstock
Spindle nose (BT/CAT/ISO) #40 taper / #50 taper
Spindle RPM (#40 taper) 6,000 / 8,000 (opt.)
Spindle RPM (#50 taper) 4,500 / 6,000 (opt.)
Feedrate
Rapid traverse for X, Y, Z axis 15000 mm./.min (600 ipm)
Cutting feed for X, Y, Z axis 1-10000 mm./.min (0.04-400 ipm)
Motors
Main motor #40 (cont./30min) 7.5Kw / 11K
Main motor #50 (cont./30min) 11Kw / 15Kw
AC servo motor for each axis 2Kw-14NW / 3.5Kw-22NM (opt.)
Coolant system 580W
Lubrication system 25W
Chiller system 850W for spindle over 8,000RPM
Automatic tool changer
Magazine for armless type 16 / 20 tools
Magazine for arm type 24 / 32 /40 tools
Max. tool diameter #40: 70 / 127 (3"/5") #50:125 / 180 (5"/7")
Max. tool length #40:300 (11.8") #50:350 (13.8")
Max. tool weight #40 : 7 kgs (15lbs) #50 : 15kgs (33lbs)
Accuracy
Positioning ¡À0.005 mm / ¡À0.0002"
Repeatability ¡À0.005 mm / ¡À0.0002"
General information
Air pressure 5Kg / cm² over
Machine weight 6500 (14300 lbs)
Floor space (L ¡Á W ¡Á H) 3200 ¡Á 3300 ¡Á 2800 (126" ¡Á 130" ¡Á 110")
