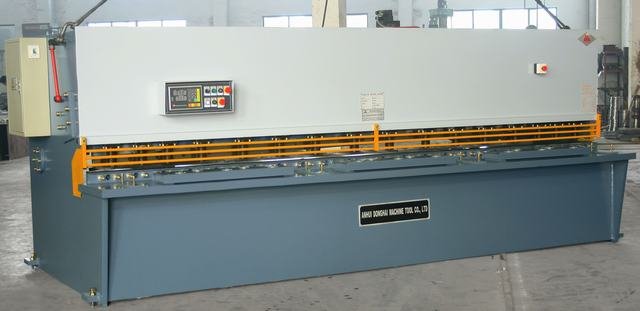

designed specifically for cutting machines, low-cost, high-precision, high-performance CNC system
keyboard control Perspective high contrast LCD
axis CNC control after a retaining material (X-axis resolution 0.1)
three simulated axis control blade gap, the shear length of the dead point and the shear angle after block material control systems or domestic E20 CNC system.
five digits of auxiliary functions and shearing process after block material yield
customer requirements for the allocation of different models of CNC cutting machines Tilting
public Imperial conversion, multi-lingual text for choice
optional serial interface (RS232 or RS422)
Comprehensive Test Monitor

Model	The rate of motor (KW)	May thickness shear (mm)	Can Cutting width (mm)	Shear angle	Material strength (KN/cm)	After the expected adjustment of the block (mm)	≤ Trip frequency ( / Min )	Weight (kg)	Appearance size ( Long *width* High )( Mm )
4*2500	5.5	4	2500	1°30	≤450	20-400	16	3800	3040*1550*1550
4*3200	7.5	4	3200	1°30	≤450	20-600	13	5700	3840*1550*1550
4*4000	7.5	4	4000	1°30	≤450	20-600	10	7600	4500*1700*1700
4*6000	7.5	4	6000	1°30	≤450	20-800	8	15000	6460*2100*2300
6*2500	7.5	6	2500	1°30	≤450	20-600	15	5500	3040*1710*1620
6*3200	7.5	6	3200	1°30	≤450	20-600	12	6500	3840*1710*1620
6*4000	7.5	6	4000	1°30	≤450	20-600	9	8200	4620*1850*1700
6*6000	15	6	6000	1°30	≤450	20-800	5	1700	6480*2100*2300
8*2500	7.5	8	2500	1°30	≤450	20-600	14	5800	3040*1700*1700
8*3200	7.5	8	3200	1°30	≤450	20-600	10	6800	3860*1700*1700
8*4000	11	8	4000	1°30	≤450	20-600	8	8800	4640*1700*1700
8*6000	15	8	6000	1°30	≤450	20-800	6	18000	6480*2100*2350
10*2500	11	10	2500	1°30	≤450	20-600	10	6500	3040*1800*1700
10*3200	11	10	3200	2°	≤450	20-600	9	7400	3860*2000*1700
10*4000	15	10	4000	2°	≤450	20-600	8	12500	4650*2100*2000
10*6000	18.5	10	6000	1°30	≤450	20-800	6	22000	6500*2100*2300
12*2500	18.5	12	2500	1°40	≤450	20-800	12	9800	3140*2050*2000
12*3200	18.5	12	3200	1°40	≤450	20-800	10	11600	3880*2150*2000
12*4000	18.5	12	4000	2°	≤450	20-800	8	13800	4680*2150*2100
16*2500	18.5	16	2500	2°	≤450	20-800	10	11000	3140*2150*2000
16*3200	18.5	16	3200	2°	≤450	20-800	8	12600	3880*2150*2000
16*4000	18.5	16	4000	2°30	≤450	20-800	6	14500	4650*2150*2200
20*2500	30	20	2500	2°30	≤450	20-800	8	14800	3440*2300*2500
20*3200	30	20	3200	2°30	≤450	20-800	7	17000	4150*2350*2700
25*2500	30	25	2500	3°	≤450	20-1000	8	18800	3200*2700*2900
30*4000	37	30	4000	3°	≤450	20-1000	8	29000	4700*3200*3400
