Wire Straightening and cutting machine GT series

Previous ‹‹ » Next

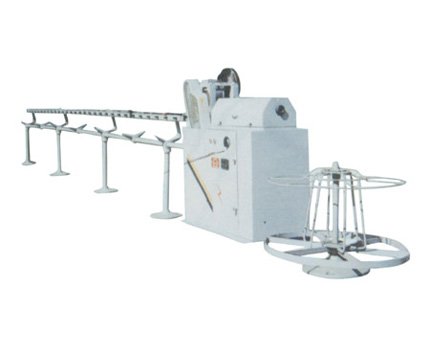

Wire Straightening and cutting machine GT series


Description:
This machine mainly consists of tray bar rack, straighting rack, tractor cutting device, base support, motor rotation facility and control box of electric appliances.

Model:Gt-1/4
Specifications:
1.Dia.of adjust straight wier:1-4mm
2.Long of cut off:20-2000mm
3.Speed of adjust straight:18-25mm
4.Adjust straight reel speed:1964.5rpm
5.Electric motor:0.55kwx2
6.Overall dimension(LxWxH):2250x400x900mm
7.Weight:300kg

Model:GT-4/8
Specifications:
1.Dia.of adjust straight wier:3?4-8mm
2.Long of cut off:100-6000mm
3.Error of cut off:±2mm
4.Speed of adjust straight:=35m/min
5.Adjust straight reel speed:2000rpm
6.Electric motor of adjust straight:Y100L-2?3kw
7.Electric motor:Y112M-6?2.2kw
8.Overall dimension(LxWxH):7330×600×1240mm
9.Weight:650kg
