Double Column Vertical Lathe - C5250

     Lathe ---    Lathe - Vertical Lathe    ---

Previous ‹‹ » Next

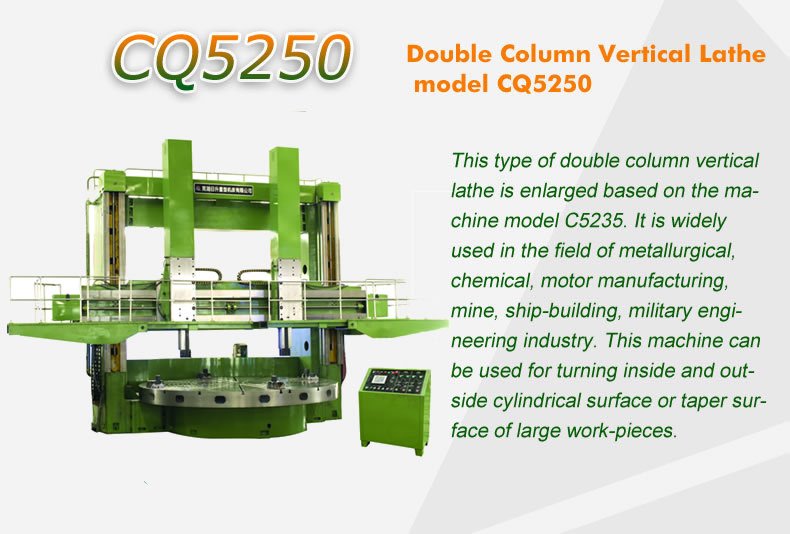

Double Column Vertical Lathe - C5250


主要技术参数:
Main specifications:



最大车削直径 mm

Max. turning diameter

5000

工件最大高度 mm

Max. height of work-piece

2000 (can be extended)

工件最大重量 T

Max. weight of work-piece

32

最大切削力 N

Max. cutting power

50000

最大扭转力矩 N.m

Max. swivel torque

84000

工作台直径  mm

Working table diameter

3900/4200

工作台转速范围 r/min

Speed range of working table

1~35

刀架水平移动距离 (X) mm

Horizontal movement of tool post

2650

刀架垂直移动距离 (Z) mm

Vertical movement of tool post

1250 (can be extended)

刀架最大回转角度

Max. swivel angle of tool post

±30°

刀架进给量范围  mm/min

Range of feed amount of tool post

02.0~100

刀架快速移动速度  mm/min

Rapid movement of tool post

2000

横梁最大行程  mm

Max. travel of cross rail

1750

主电机功率  Kw

Main motor power

75 (frequency conversion)

机床重量   T

Machine weight

70

外形尺寸(长×宽×高) mm

Overall dimensions (L×W×H)

8363×6131×5005
