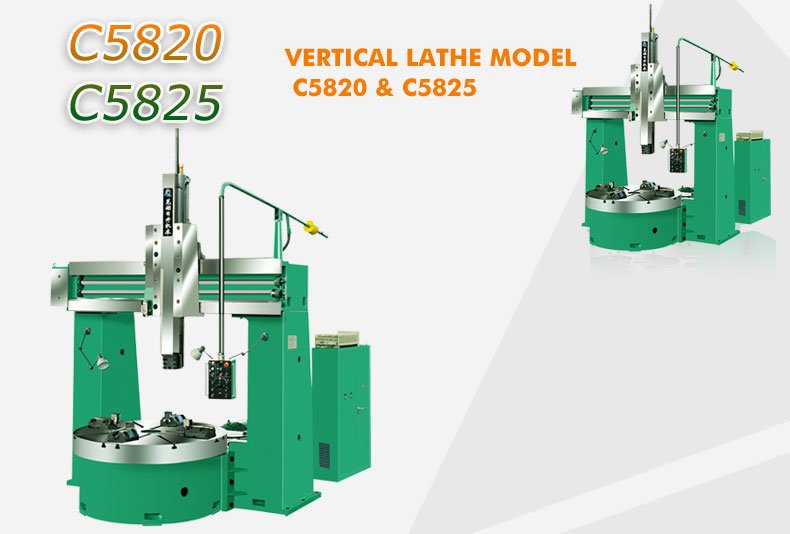

Single Column Vertical Lathe - C5820& C5825

     Lathe ---    Lathe - Vertical Lathe    ---

Previous ‹‹ » Next

Single Column Vertical Lathe - C5820& C5825


Main specifications:



ITEM

C5820

C5825

working table diameter

2000mm

2000mm

Max. turning diameter

2000mm

2500mm

Max. height of work-piece

1400mm

(can be extended)

1400mm

(can be extended)

Max. load allowed on table

6300Kg

6300Kg

range of working table speed (stepless)

2.5-80r/min

2.5-80r/min

horizontal travel of tool post

1150mm

1300mm

vertical travel of tool post

1350mm

(can be extended)

1350mm

(can be extended)

swing angle of tool post

±30°

±30°

feed range of feed box

0.25-90mm/min

0.25-90mm/min

rapid movement of tool post

1560 mm/min

1560 mm/min

power of main motor(frequency control)

55Kw

55Kw

rapid motor power of tool post

2.2Kw

2.2Kw

power of oil pump motor

2.2Kw

2.2Kw

power of feed motor(frequency control)

2.0(2.85)Kw

2.0(2.85)Kw

power of general motor

About 60Kw

About 60Kw

total weight

About 25t

About 28t

overall dimensions

3.7×3.6×4.9m

4.0×3.8×4.9m
