Vertical Turning And Grinding Machine - CMIK5820

     Lathe ---    Lathe - Vertical Lathe    ---

Previous ‹‹ » Next

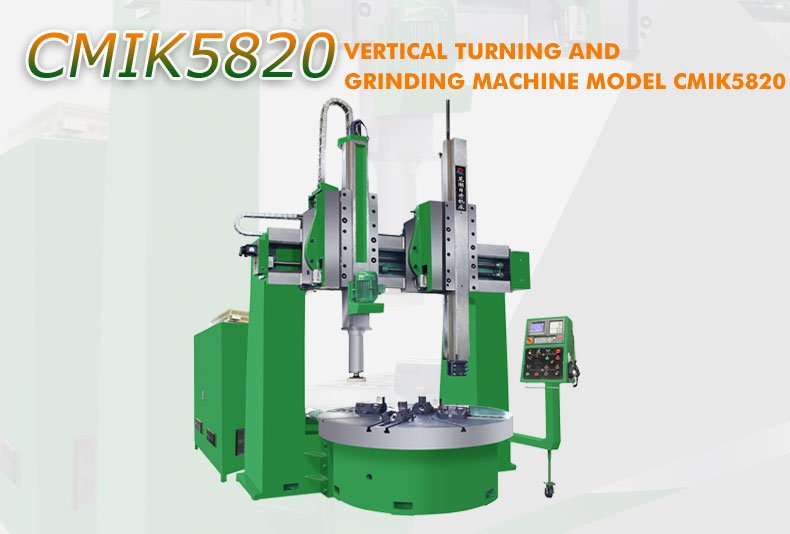

Vertical Turning And Grinding Machine - CMIK5820


Main specifications:



Working table diameter

1800mm

Max. turning diameter

2000mm

Max. height of work-piece

1250mm

Max. weight of work-piece

6300Kgf

Range of working table speed

2.5-80r/min (stepless)

Horizontal movement of tool post

1150mm

Vertical movement of tool post

1000mm

Swing angle of tool post

±30°

Feed range of gearbox

0.25-90mm/min

Rapid movement of tool post

1560mm/min

Power of main motor

55Kw (frequency control)

Rapid motor power

2.2Kw

Power of oil pump motor

2.2Kw

Power of feed motor

0.75Kw (frequency control)

Power of general motor

about60Kw

Weight

about25T

Over dimensions

3.7×3.6×4.7m

Speed of wheel head

2890r/min

Power of wheel head

4Kw

Movement speed of wheel head

0-2.5m/min

Feeding speed of wheel head

Stepless, Min. feed amount 0.001mm/grid

Mode of feeding

Manually-operated or mechanically-operated

Max. travel of wheel head

740mm

Grinding diameter

240-1000mm

Grinding depth

420 (Max. 560 for special order) mm
