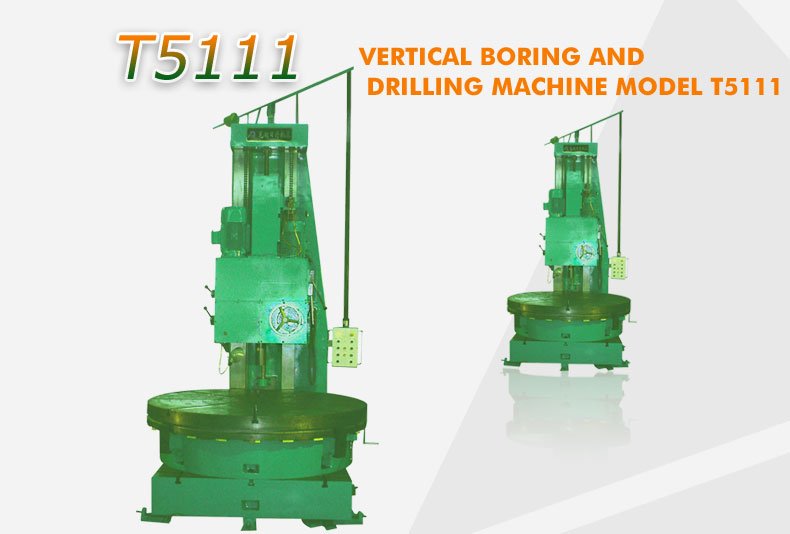

Vertical Boring And Drilling Machine - T5111
| Previous ‹‹ | » Next |
Main specifications:
|
Spindle diameter |
Φ110mm |
|
Spindle taper hole |
Morse 6＃ |
|
Max. boring diameter |
Φ240mm |
|
Max. drilling diameter |
Φ80mm |
|
Distance between spindle centre line and column guideways surface |
420mm |
|
Distance between spindle end and plane table surface |
500~2000mm |
|
Max. axial movement of spindle |
400mm |
|
Speed range of spindle |
10,18,32,63,110,200 rpm (6 steps) |
|
Feed range of spindle |
0.05,0.08,0.12,0.200.31,0.50（6steps）mm/r |
|
Rapid movement of spindle and spindle box |
300mm/min |
|
Moving distance of spindle box |
1500mm |
|
Indexing table diameter |
Φ2000mm |
|
Power of main motor |
7.5Kw |
|
Power of rapid motor |
3Kw |
|
Weight |
18000Kg |
|
Overall dimensions |
3240×2000×4180mm |
