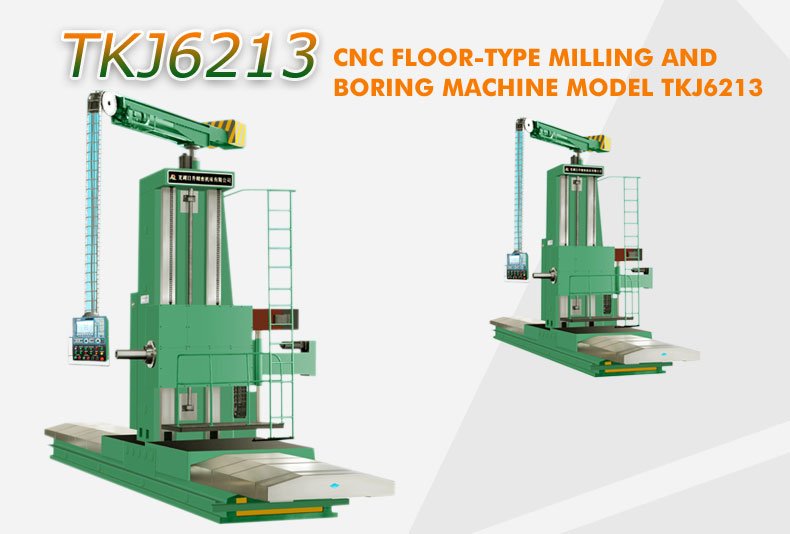

Cnc Floor Type Milling And Boring Machine - TKJ6213
| Previous ‹‹ | » Next |
Main specifications:
|
Boring spindle diameter |
ø130 |
|
Milling arbor end diameter |
221.44 |
|
Spindle taper |
公制80＃ Metric system（ISO50#） |
|
Spindle speed |
3~700 |
|
Power of spindle motor |
22 |
|
Max. torque of boring spindle |
3500 |
|
Max. axial resistance of boring spindle |
30000 |
|
Max. torque of milling arbor |
4000 |
|
Facing plate diameter |
ø 600 |
|
Facing plate speed |
3~122 |
|
horizontal travel of column |
4000（可加长）(can be extended) |
|
Vertical travel of spindle box |
2000（可加长）(can be extended) |
|
Axial travel of spindle |
1000 |
|
Feed speed X |
4~3000 |
|
Y |
2~3000 |
|
Z |
1~2000 |
|
Power of feed motor X |
10 |
|
Y |
6.7 |
|
Z |
4 |
|
CNC system |
FAGOR 8055（SINUMERIK 840D） |
|
Overall dimensions (L×W×H) |
7900×3500×5890 |
|
Weight (approx) |
approx34 |
