Double end pipe bender machine

Previous ‹‹ » Next

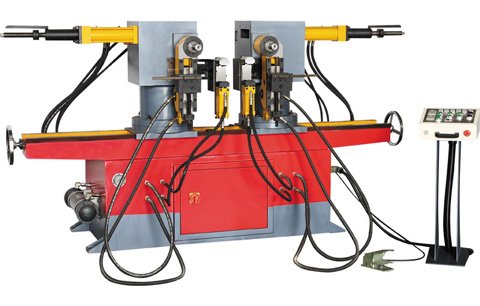

Double end pipe bender machine


Characteristics of Double Head Pipe Bende:
a. Two axes bending synchroically. Have the characteristics of promapt, accurate and strong pipe bending capacity.
b. Two axes can set different bending angles. It is mostly suitable for general dual orientations bending machining.
c. It processes the emergent stop device besides the functions of manual, semi-auto and full-auto.
d. The bending angle can be adjusted from 0° to 180° freely.
e. Maximum machining time per hour can reach 720 times per hour.
f. The central distance between two axes is 140-1200mm.
g. The outer appearance of finished pipe is perfect without cockle.

Technical Specification of Double Head Pipe Bende:
Specification UNIT KM-DA38/SCM KM-DA38/PLC
Max. Round Pipe mm 38.1 38.1
Max. Square Pipe mm 30 30
Max. Round Bar mm 20 20
Bending Radius mm 30-170 30-170
Bending Angle degree 190 190
Bending Speed deg/sec 90 90
Accuracy degree +/-0.15 +/-0.15
Motor for Hydraulic kw 5.5 5.5
Max. Working Pressure Kg/cm² 120 120
Hydraulic Tank Capacity Liter 80 80
Total Width mm 950 950
Total Height mm 2000 2000
Total Length mm 2500 2500
Total Weight kg 1450 1450
