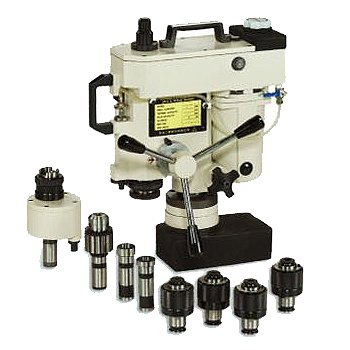

Portable electromagnetic drill & tapping machine AE-25S

Previous ‹‹ » Next

Portable electromagnetic drill & tapping machine AE-25S



Product Features
  • Rapid adaptor design:
    Drill sleeves, borer holder and tapper set are all rapid adaptor design,convenient for replacement of cutters and increasing efficiency.
  • Coolant tank:
    It is integrated with machine body, more stable. This could reduce damage resulting from out going impact.
  • The most suitable for drilling or tapping on heavy work-pieces that is difficult to be moved, such as production of machine tools, steel skeleton of building, H type steel, big steel plate and steam furnace..etc.

Specifications
Model AE-22S AE-25S AE-22N AE-25N
Power(AC) 110V 110V 110V 110V
220V 220V 220V 220V
Motor Rated Output 1350W 1350W 1350W 1350W
1350W 1350W 1350W 1350W
Motor Rated Ampere 12A 12A 12A 12A
6.5A 6.5A 6.5A 6.5A
R.P.M. 380
730		 380
730		 380
730		 380
730
Drill Capacity 1/8"~7/8"
3~22mm		 1/8"~1-1/8"
3~30mm		 1/8"~7/8"
3~22mm		 1/8"~1-1/8"
3~30mm
Feeding Stroke 100mm 100mm 100mm 100mm
Hole Capacity - - 5/8"~1-9/16"
16~40mm		 5/8"~2"
16~52mm
Tapping Capacity 5/16"~1/2"
8~14mm		 3/8"~3/4"
10~20mm		 - -
Body Stroke 100mm 100mm 100mm 100mm
Turning Degree 180° 180° 180° 180°
Transversal Move 15mm 15mm 15mm 15mm
Magnetic 180x105mm 200x112mm 180x105mm 200x112mm
Magnetic Force 900kgf 1500kgf 900kgf 1500kgf
Height 470mm 480mm 470mm 480mm
Machine Weight 28kgs 32kgs 28kgs 32kgs
* These specifications and shape may be changed for improvement without prior notice.
----------------------------------------------------------------------------------------------

Product Features
  • Rapid adaptor design:
    Drill sleeves, borer holder and tapper set are all rapid adaptor design,convenient for replacement of cutters and increasing efficiency.
  • Coolant tank:
    It is integrated with machine body, more stable. This could reduce damage resulting from out going impact.
  • The most suitable for drilling or tapping on heavy work-pieces that is difficult to be moved, such as production of machine tools, steel skeleton of building, H type steel, big steel plate and steam furnace..etc.

Specifications
Model AE-22S AE-25S AE-22N AE-25N
Power(AC) 110V 110V 110V 110V
220V 220V 220V 220V
Motor Rated Output 1350W 1350W 1350W 1350W
1350W 1350W 1350W 1350W
Motor Rated Ampere 12A 12A 12A 12A
6.5A 6.5A 6.5A 6.5A
R.P.M. 380
730		 380
730		 380
730		 380
730
Drill Capacity 1/8"~7/8"
3~22mm		 1/8"~1-1/8"
3~30mm		 1/8"~7/8"
3~22mm		 1/8"~1-1/8"
3~30mm
Feeding Stroke 100mm 100mm 100mm 100mm
Hole Capacity - - 5/8"~1-9/16"
16~40mm		 5/8"~2"
16~52mm
Tapping Capacity 5/16"~1/2"
8~14mm		 3/8"~3/4"
10~20mm		 - -
Body Stroke 100mm 100mm 100mm 100mm
Turning Degree 180° 180° 180° 180°
Transversal Move 15mm 15mm 15mm 15mm
Magnetic 180x105mm 200x112mm 180x105mm 200x112mm
Magnetic Force 900kgf 1500kgf 900kgf 1500kgf
Height 470mm 480mm 470mm 480mm
Machine Weight 28kgs 32kgs 28kgs 32kgs
* These specifications and shape may be changed for improvement without prior notice.
