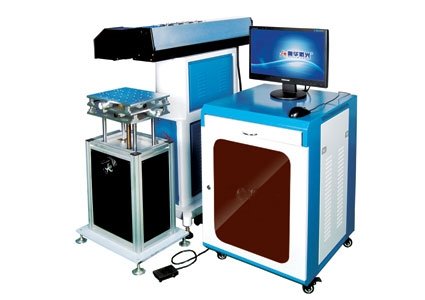

Non-metallic Laser Marking Machine
Engraving And Marking Machine --- Non-metallic Laser Marking Machine ---
Previous ‹‹ | » Next |
Mainly used for wood carving, glass-engraving, Paper coding, Jade carving,leather carving and other non-metallic laser marking, the non-metallic laser marking machine in the handicraft factory, shoe factory have extensive application.
Sample
Advantages
1, Imports of water-cooled metal laser, long life ;
2, A powerful software, support a variety of code bar code ;
Item |
ParameterName |
Parameters |
Laser |
Max.laser power |
30W |
Laser wave-length |
10.64 |
|
Repetition frequency |
≤50KHz |
|
Pw stability |
± 10% |
|
Cooling mode |
Water |
|
Mark |
Standard marking area |
100mm×100mm |
Marking area option |
100/150/200/300/400mm X100/150/200/300/400mm |
|
Positioning |
Infrared ray indicating position |
|
Marking depth |
≤7mm |
|
Linear speed |
≤7000mm/s |
|
Min.line width |
0.15mm |
|
Min.character size |
0.4mm |
|
Repetition accuracy |
±0.01mm |
|
Control |
Control system |
WINXP + dedicated marking software |
Autocoding |
Can mark automatic code,sequence number,batch number,date,bar code and two-dimensional code. |
|
supported types Of character |
All kinds of Chinese fonts and English fonts |
|
Barcodes support |
CODE39、EAN standard code、CODE128、EAN shorten cyclic codes、 EAN_128 bar code、39 code、DataMatrix、Interleaved two five、upc_A bar code、PDF417 |
|
Support for file formats |
DWG、DFX、BMP、JPG、PNG 、TIF、PCX、TAG、GIF、PLT |
|
Environment of use |
Electrical source |
220V±10%/50Hz/10A |
power dissipation |
300W |
|
Environmental Conditions |
Clean room,No hypocenter,13℃-28℃, humidity 5%-75% |
|
optional parts |
PC,Worktable |
No. |
Name |
Quantity |
Unit |
Size(mm) |
packing size(mm) |
1 |
Main Optical Path of Laser |
1 |
tower |
1100×600×1100 |
1170×670×1170 |
2 |
Main Cabinet |
1 |
tower |
900×650×600 |
970×720×670 |
3 |
worktable |
1 |
tower |
780×450×550 |
850×520×620 |
